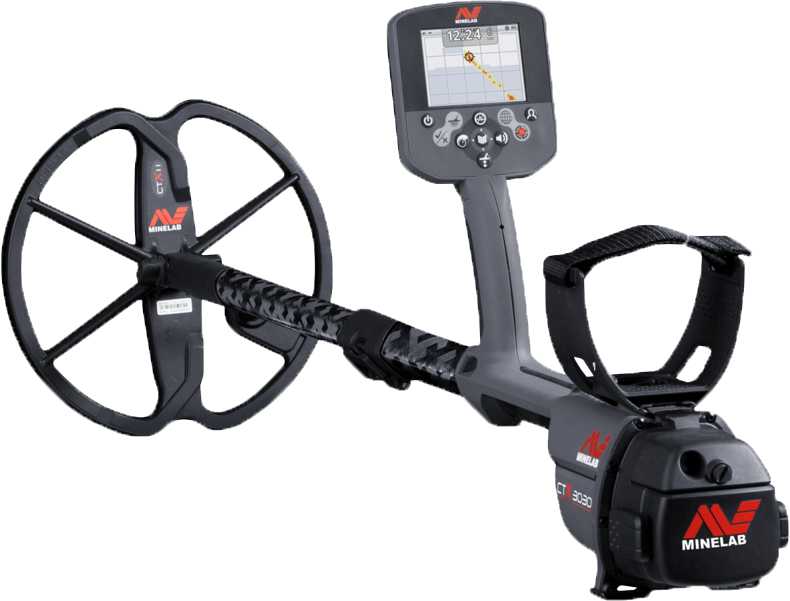

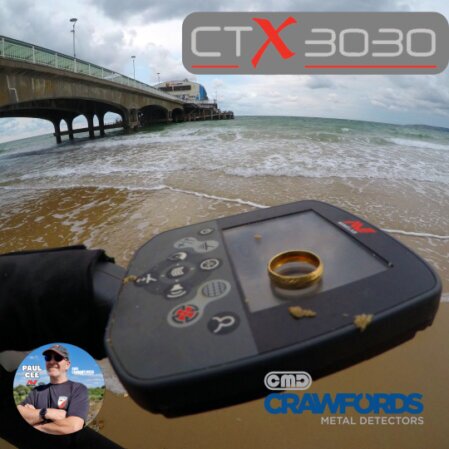

Minelab CTX 3030
The Master of Stability & Identification
FBS 2 Technology
Full Band Spectrum 2 (FBS 2) is the engine that drives the CTX 3030. Unlike single-frequency detectors that struggle in mineralized ground or saltwater, FBS 2 combines Minelab's multi-frequency transmission (1.5kHz – 100kHz) with advanced digital coil-to-detector communication.
The result is significantly better noise cancellation and signal analysis, allowing you to find deep silver coins even in iron-infested sites where other machines go silent.
The Smart Screen & Target Trace
The full-color LCD is more than just a display—it's a visual mapping tool.
- Target Trace: This features allows you to see multiple targets simultaneously. You can visually distinguish a good target (like a coin) sitting right next to a bad target (like a nail) based on their position on the FeCo (Ferrous/Conductive) graph.
- GPSi Mapping: The screen integrates GPS data, allowing you to create WayPoints and view "GeoTrails" so you can see exactly where you have already detected.
💻 The XChange 2 Advantage: Easy PC Programming
One of the CTX 3030's most distinct features is its full integration with the Minelab XChange 2 PC application.
Unlike newer machines where all settings must be tapped out on a small screen, the CTX 3030 allows you to:
- Design Custom Profiles on a Large Screen: Easily drag and drop discrimination patterns and Tone ID profiles using your mouse and keyboard.
- Manage Your Maps: View your "FindPoints" and "GeoTrails" on Google Maps to analyze where you found treasure.
- Upload/Download: Instantly transfer your custom settings to your detector via USB.
Note: This PC-based profile creation facility is NOT available on the Minelab Manticore, which relies solely on on-device programming.

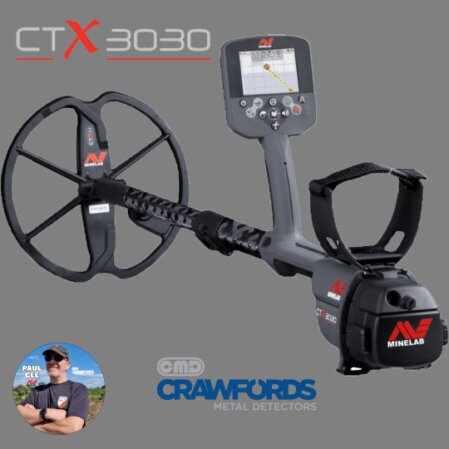

Comparison: CTX 3030 vs. Minelab Manticore
The Manticore is faster and lighter, but the CTX 3030 remains the choice for stability and advanced PC customization.
| Feature | Minelab CTX 3030 | Minelab Manticore |
|---|---|---|
| Core Tech | FBS 2 (Simultaneous Multi-Freq) | Multi-IQ+ (High Power Multi-Freq) |
| PC Programming | YES (XChange 2 Software) Create profiles & maps on PC |
NO Updates only; must program on device |
| Target ID Style | FeCo (1-50 Conductive / 1-35 Ferrous) | 0-99 Conductive Scale |
| Visuals | Color LCD with Target Trace | Color LCD with 2D Map |
| GPS | Built-in GPS & PC Mapping | No GPS |
✅ The Pros
- PC Customization: Use XChange 2 to build complex programs easily on your computer rather than fiddling with buttons in the field.
- Best Visual ID: The Target Trace remains superior for identifying bottle caps versus coins.
- Stability: Extremely stable Target IDs at depth; numbers rarely jump on deep silver.
- GPS: The only high-end machine that logs your exact find locations.
⚠️ The Cons
- Weight: It is heavy. A detecting harness is often required for long sessions.
- Recovery Speed: Slower processor speed compared to the lightning-fast Manticore.
- Legacy Connections: Uses older proprietary USB cables and battery chargers.
Available Search Coils
Official Minelab Smart Coils
The "Sniper" coil. Essential for heavy iron trash, building foundations, and rocky crevices.
The stock coil. Provides the perfect balance of depth and separation for general hunting.
The depth monster. Use this for beaches and large open pastures to get maximum depth and ground coverage.
Approved Coiltek Coils
A favorite among users. It cuts through water and trash better than the stock 11" and separates targets brilliantly.
A lighter open-field alternative to the massive Minelab 17" coil.
