Carbon Fibre Shaft for Minelab Equinox
THE BEST 2 PART CARBON SHAFT FOR Minelab Equinox 800 and Minelab Equinox 600

The two part construction is both strong and light while being easily adjustable. It has all the holes for adjusting the arm cup and total length from the original three piece shaft but will fold much shorter while fully assembled by retracting the lower stem almost fully into the upper.

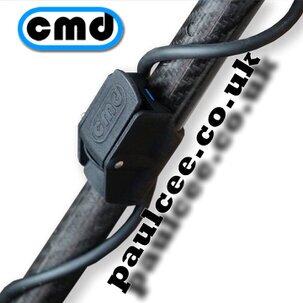

Adjustments to the lower stem is made simple by our own quick release, lever cam-lock made from tough light nylon and a no-nonsense one-piece stainless steel button clip. The cam-lock has been specially designed to be compatible with standard Minelab spare parts. In the event of wear the lever, pivot pin and press block may be replaced with those from the Minelab E-Trac and Safari cam-locks, giving you peace of mind that spares are available from Minelab outlets.

Hands have been busy in the Crawfords workshop developing the ultimate lightweight carbon fibre stem for the Minelab Equinox metal detector. Our unique design offers the very best in quality and style to enhance your experience with the Minelab Equinox.

Our prototype design has been field tested with the 15" coil (EQX15) to ensure the cam-lock and button clip gives a firm hold free from any wobble.

In addition to this full shaft we can supply just the upper or the lower shaft separately.

Both parts are compatible with and interchangeable with the standard Minelab Equinox shafts allowing you to swap and change parts at you convenience, for example a spare lower may be used to hold an accessory coil for quick change over.

Minelab Equinox Custom Carbon shafts from paul cee on Vimeo.

SPECIFICATION

Upper Shaft Length

880mm

Upper Shaft Weight

106g

Lower Shaft Length

615mm

Lower Shaft Weight

93g

Total Length Retracted

965mm

Max Length Extended

1378mm

Min Length Extended

1098mm

MATERIALS

Upper and Lower Shaft

Carbon Fibre, for maximum strength at minimum weight.

Cam-Lock and Iso-Tip

Nylon, tough, durable and light.

Button Clip and Cam-Lock Pivot

Stainless Steel, avoids corrosion in salt water use.
